文章 - 【GHCTF2025】re-腐蚀

Problem: [GHCTF 2025]腐蚀

@TOC

main函数

NSSIMAGE

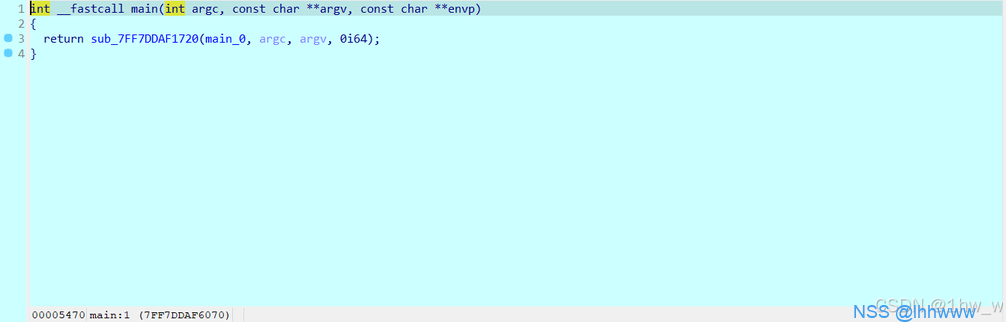

ida打开，是rust，进入真正的main函数main_0。

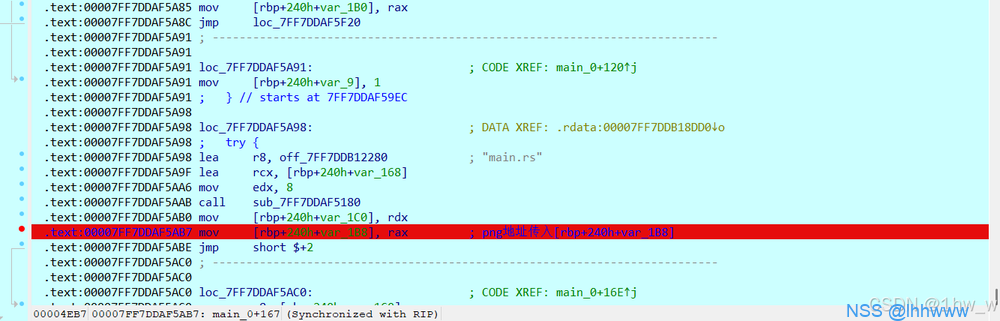

看到明显读入了一个Input.png，但是不知道是在哪里读入的。

动调

随便放个Input.png直接开始动调，每个函数前后都停一下，直到找到读入的图片信息
NSSIMAGE

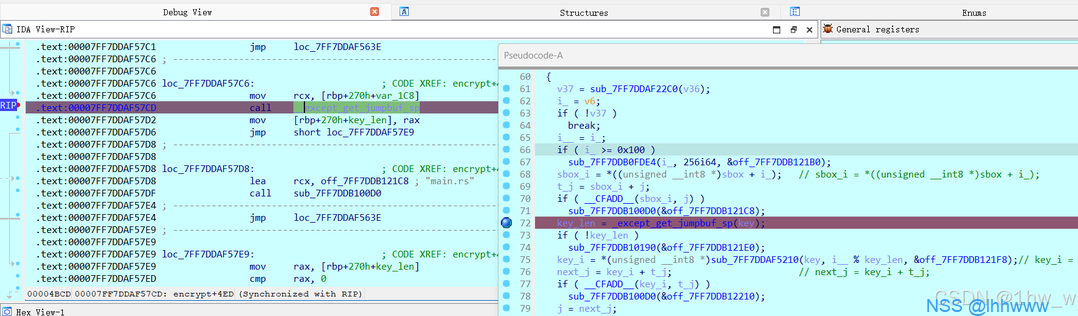

图片存储地址在rax中，点进去下个硬件断点。

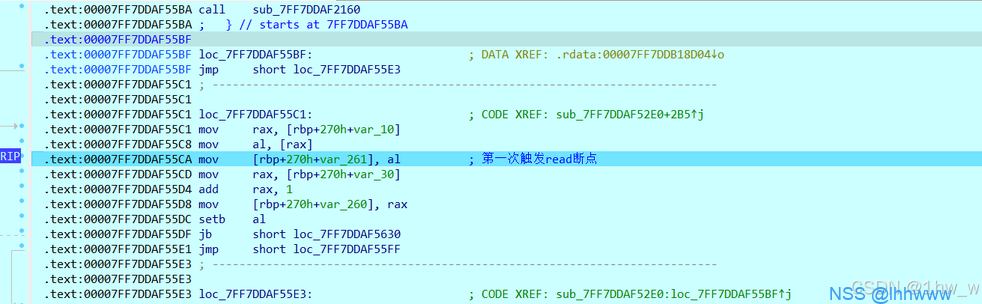

然后开始跑，第一个出发断点的位置：

加密

RC4

看伪代码，发现是RC4，但是最后异或了0x1F，我处理过的代码如下：


v45 = -2i64;
  memset(sbox, 0, sizeof(sbox));
  v32[0] = sub_7FF7DDAF3D10(0i64, 256i64);
  v32[1] = v3;
  while ( 1 )
  {
    v33 = sub_7FF7DDAF22C0(v32);
    v34 = v4;
    if ( !v33 )
      break;
    if ( v34 >= 0x100 )
      sub_7FF7DDB0FDE4(v34, 256i64, &off_7FF7DDB12240);
    *((_BYTE *)sbox + v34) = v34;               // sbox生成0-255字节流
  }
  j = 0i64;
  v36[0] = sub_7FF7DDAF3D10(0i64, 256i64);
  v36[1] = v5;
  while ( 1 )
  {
    v37 = sub_7FF7DDAF22C0(v36);
    i_ = v6;
    if ( !v37 )
      break;
    i__ = i_;
    if ( i_ >= 0x100 )
      sub_7FF7DDB0FDE4(i_, 256i64, &off_7FF7DDB121B0);
    sbox_i = *((unsigned __int8 *)sbox + i_);   // sbox_i = *((unsigned __int8 *)sbox + i_);
    t_j = sbox_i + j;
    if ( __CFADD__(sbox_i, j) )
      sub_7FF7DDB100D0(&off_7FF7DDB121C8);
    key_len = _except_get_jumpbuf_sp(key);
    if ( !key_len )
      sub_7FF7DDB10190(&off_7FF7DDB121E0);
    key_i = *(unsigned __int8 *)sub_7FF7DDAF5210(key, i__ % key_len, &off_7FF7DDB121F8);// key_i = key[i % key_len]
    next_j = key_i + t_j;                       // next_j = key_i + t_j;
    if ( __CFADD__(key_i, t_j) )
      sub_7FF7DDB100D0(&off_7FF7DDB12210);
    j = next_j;
    swap((unsigned int)sbox, 256, i__, next_j, (__int64)&off_7FF7DDB12228);
  }
  jumpbuf_sp = _except_get_jumpbuf_sp(a3);
  sub_7FF7DDAF4DA0((__int64 *)&v39, jumpbuf_sp, (__int64)&off_7FF7DDB120D8);
  i = 0i64;
  j__ = 0i64;
  v7 = sub_7FF7DDAF50B0(a3);
  v9 = sub_7FF7DDAF4AC0(v7, v8);
  v43[0] = sub_7FF7DDAF5090(v9, v10);
  v43[1] = v11;
  while ( 1 )
  {
    png_address = (char *)sub_7FF7DDAF5270(v43);
    if ( !png_address )
      break;
    png_byte = *png_address;                    // png_byte = *png_address;
    i_plus_1 = i + 1;
    if ( i == -1i64 )
      sub_7FF7DDB100D0(&off_7FF7DDB120F0);
    i = i_plus_1;                               // i = i + 1
    sbox_i_1 = *((unsigned __int8 *)sbox + i_plus_1);// sbox_i_1 = *((unsigned __int8 *)sbox + i_plus_1);
    new_j = sbox_i_1 + j__;                     // new_j = sbox_i_1 + j__;
    if ( __CFADD__(sbox_i_1, j__) )
      sub_7FF7DDB100D0(&off_7FF7DDB12120);
    j__ = new_j;
    swap((unsigned int)sbox, 256, i, new_j, (__int64)&off_7FF7DDB12138);
    if ( i >= 0x100 )
      sub_7FF7DDB0FDE4(i, 256i64, &off_7FF7DDB12150);
    sbox_i_n = *((unsigned __int8 *)sbox + i);  // sbox_i_n = *((unsigned __int8 *)sbox + i);
    if ( j__ >= 0x100 )
      sub_7FF7DDB0FDE4(j__, 256i64, &off_7FF7DDB12168);
    sbox_j_n = *((unsigned __int8 *)sbox + j__);// sbox_j_n = *((unsigned __int8 *)sbox + j__);
    if ( __CFADD__(sbox_j_n, sbox_i_n) )
      sub_7FF7DDB100D0(&off_7FF7DDB12180);
    LOBYTE(v14) = *((_BYTE *)sbox + (unsigned __int8)(sbox_j_n + sbox_i_n)) ^ png_byte ^ 0x1F;// LOBYTE(v14) = *((_BYTE *)sbox + (unsigned __int8)(v15 + v21)) ^ png_byte ^ 0x1F;
    sub_7FF7DDAF4F40(&v39, v14, &off_7FF7DDB12198);
  }
  *(_QWORD *)(a1 + 16) = v40;
  *(_OWORD *)a1 = v39;
  sub_7FF7DDAF2160(a3);
  sub_7FF7DDAF2160(key);
  return a1;

理论上把所有异或字节dump出来即可，但是图片太大了，我们就把key找出来
NSSIMAGE

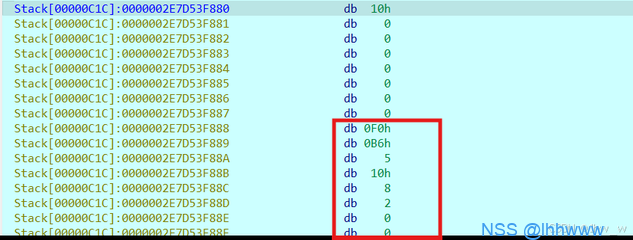

断点段在这，点进去key，地址在8字节处
NSSIMAGE
跳转过去，dump下来：

6082AE424E4449451A0A0D0A4E478950

NSSIMAGE

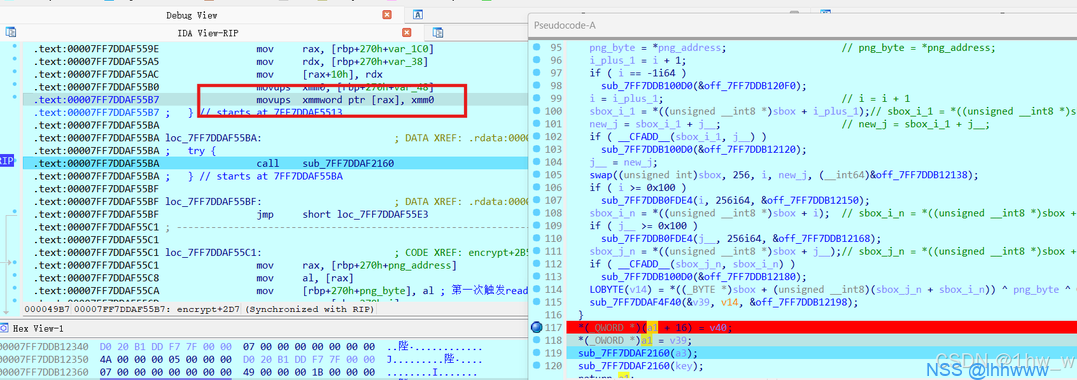

可以猜到RC4加密结果存储在v39中，断在如图所示处，进入rax，找到地址，打下断点，与刚刚操作类似。

换序

继续跑，断点被触发，查看逻辑
NSSIMAGE
交换了i和a5-1-i的字节，疑似换序，发现a5还刚好是图片字节数的一半，稳辣

脚本


def reverse_file_bytes(input_filename, output_filename):
    # 读取输入文件的二进制内容
    with open(input_filename, 'rb') as file:
        file_data = file.read()

    # 将字节数据倒序
    reversed_data = bytearray(reversed(file_data))

    # 将倒序后的数据写入到输出文件
    with open(output_filename, 'wb') as file:
        file.write(reversed_data)

input_filename = "C:\\Users\\35202\\Downloads\\fs\\fs\\enc"  # 输入文件路径
output_filename = 'C:\\Users\\35202\\Downloads\\fs\\fs\\out'  # 输出文件路径
reverse_file_bytes(input_filename, output_filename)
def rc4_decrypt(ciphertext, key):
    S = list(range(256))
    j = 0
    out = []

    # KSA - Key Scheduling Algorithm
    for i in range(256):
        j = (j + S[i] + (key[i % len(key)])) % 256
        S[i], S[j] = S[j], S[i]

    i = j = 0
    for char in ciphertext:
        i = (i + 1) % 256
        j = (j + S[i]) % 256
        S[i], S[j] = S[j], S[i]
        out.append(chr(ord(char) ^ S[(S[i] + S[j]) % 256] ^ 0x1f))

    return ''.join(out)

def decrypt_file(input_filename, output_filename, key):
    # 读取输入文件的二进制内容
    with open(input_filename, 'rb') as file:
        file_data = file.read()

    # 将字节数据转换为可处理的格式并解密
    decrypted_data = rc4_decrypt(file_data.decode('latin1'), key).encode('latin1')

    # 将解密后的数据写入到输出文件
    with open(output_filename, 'wb') as file:
        file.write(decrypted_data)

input_filename = 'C:\\Users\\35202\\Downloads\\fs\\fs\\out'  # 加密文件路径
output_filename = 'C:\\Users\\35202\\Downloads\\fs\\fs\\flag.png'  # 解密后文件保存路径
key = bytes.fromhex("6082AE424E4449451A0A0D0A4E478950") # RC4解密所需的密钥

decrypt_file(input_filename, output_filename, key)

美了美了
NSSIMAGE

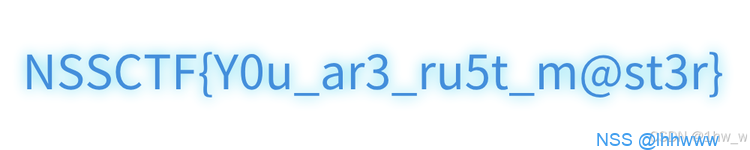

flag:NSSCTF{Y0u_ar3_ru5t_m@st3r}
